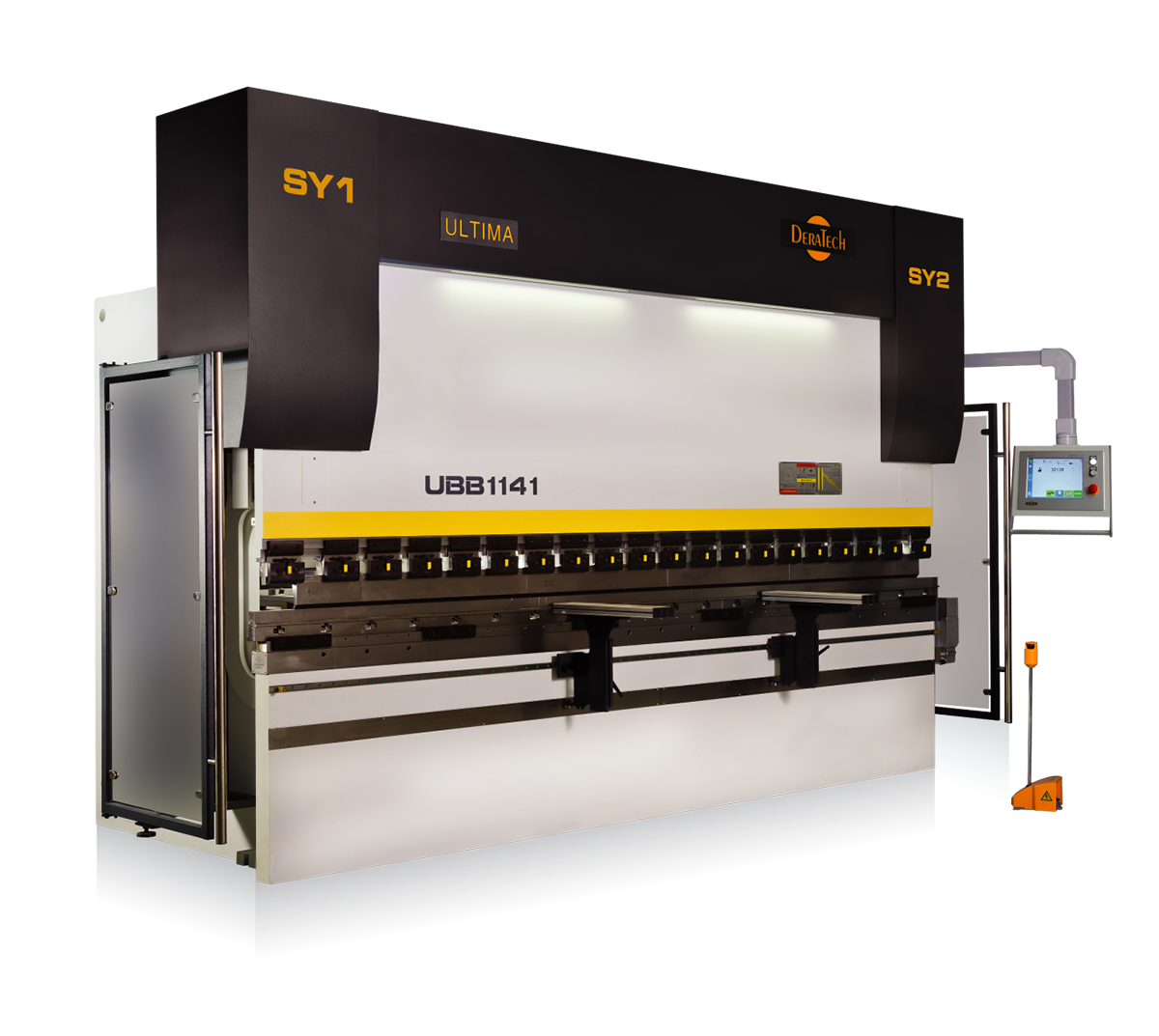

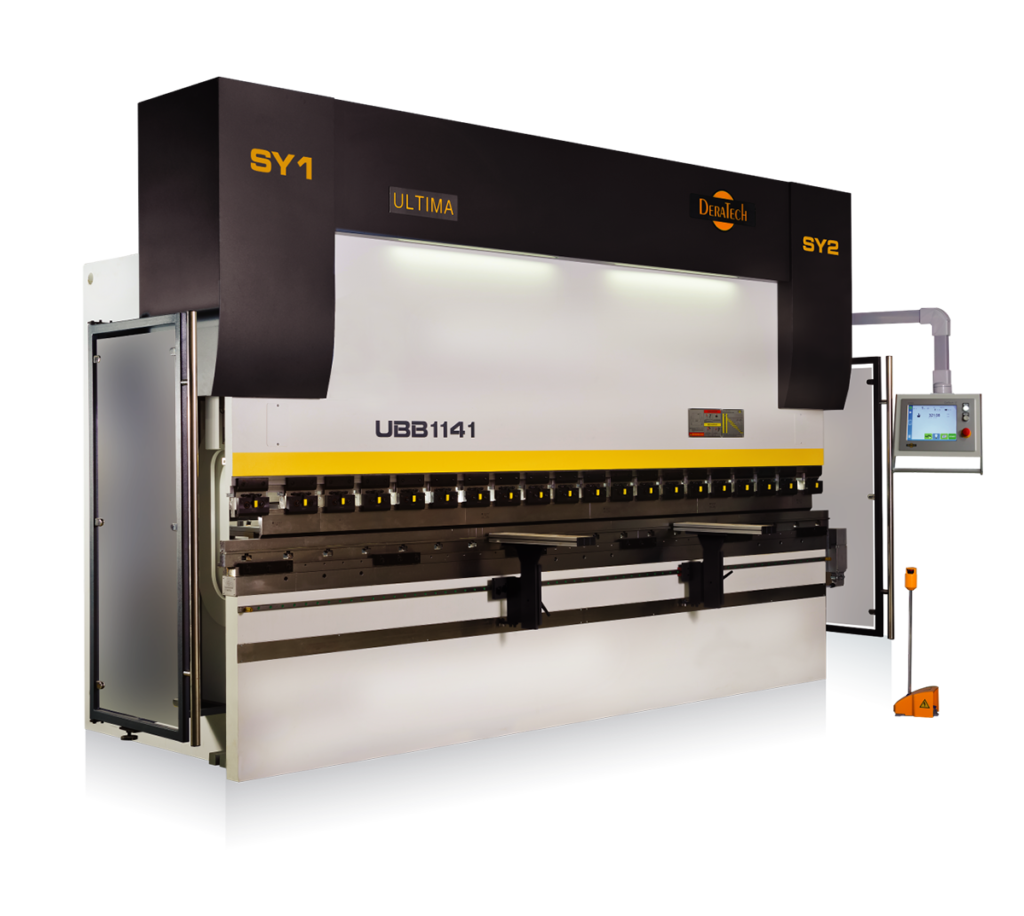

Ultima Hybrid
Ultima Hybrid is GREEN brother of the Ultima, with all same features and options but with GREEN TECHNOLOGY implemented in the machine and saving up to 65% of energy.
Technical Information
- The hybrid drive sends the appropriate amount of oil to the cylinders only if the upper beam has to move
- Extremely accurate positioning of the upper beam to 5 μ
- Low-noise, highly dynamic machine
- Available with hydraulic crowning or mechanical crowning Wila style, both cnc-controlled as standard
- Environmentally and maintenance-friendly: only 35 liters of oil are required per cylinder
- No hydraulic tube, which also means no risk of oil leaks

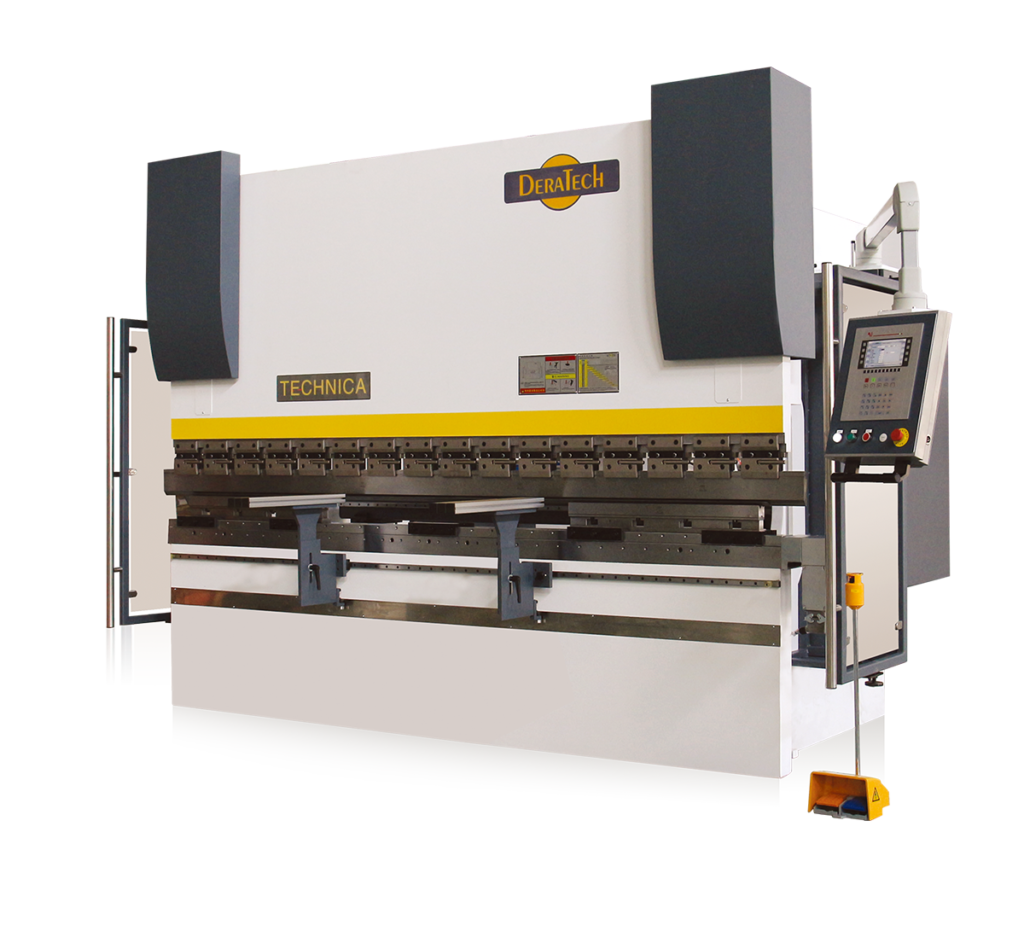

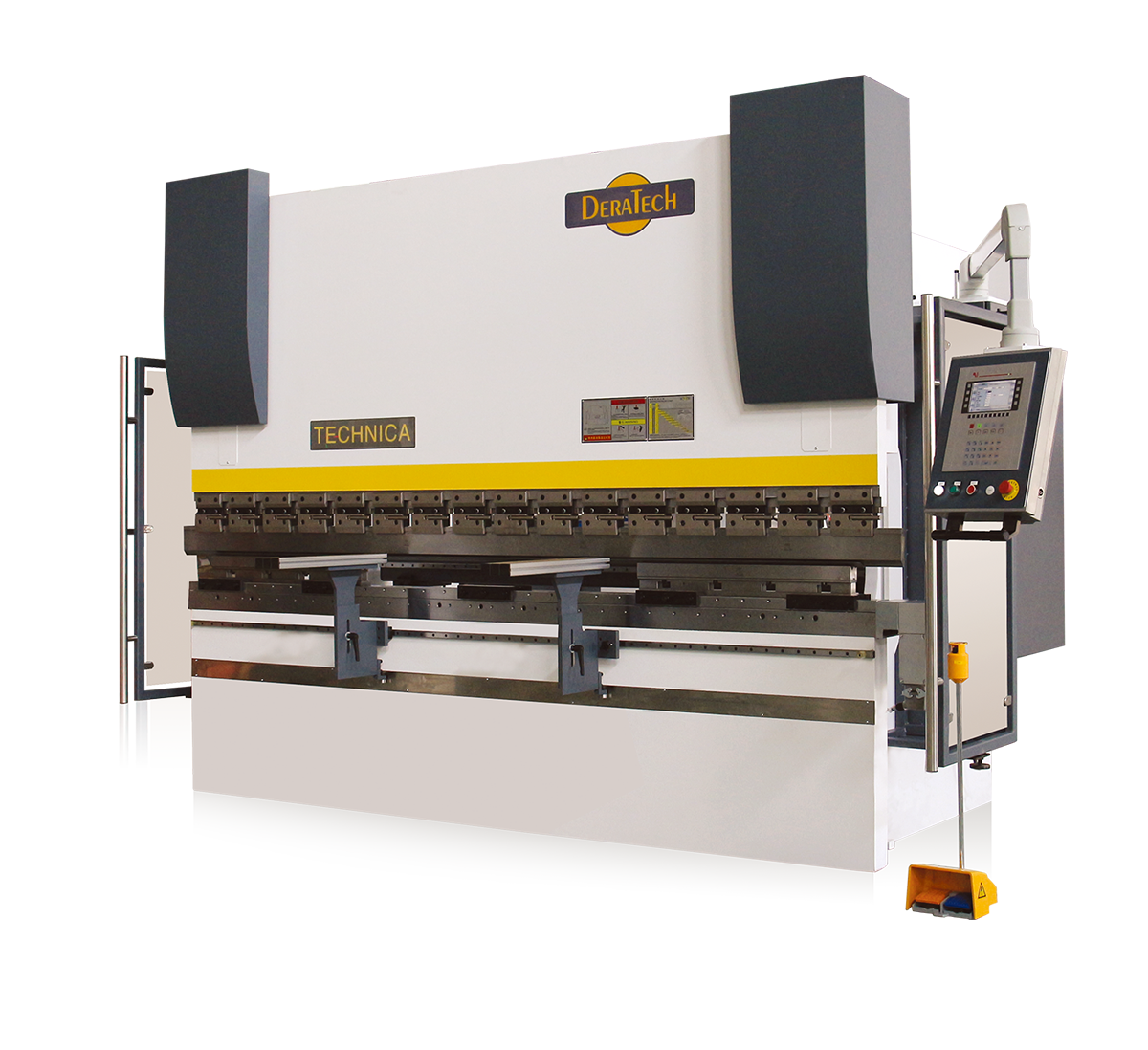

Technica
Technica is a precision CNC-controlled press brake with hydraulic crowning in a basic but very complete configuration. The Ultima machine is equipped with 4 CNC-controlled axes (Y1-Y2, X, V).
Technical Information
- Robust durable standard pressbrake
- “Top” pressbrake at competitive price
- 5 cnc-controlled axis as standard: Y1-Y2-X-R-V
- Hoerbiger Precise hydraulic system
- Mechanical crowning (V)
- Touch Screen cnc-controller ESA 630
- Double linear measuring scales ensure a precise positioning from both cylinders Y1 and Y2
- Robust and durable construction with robot-welded and heat-annealed machine frame
- Offline software

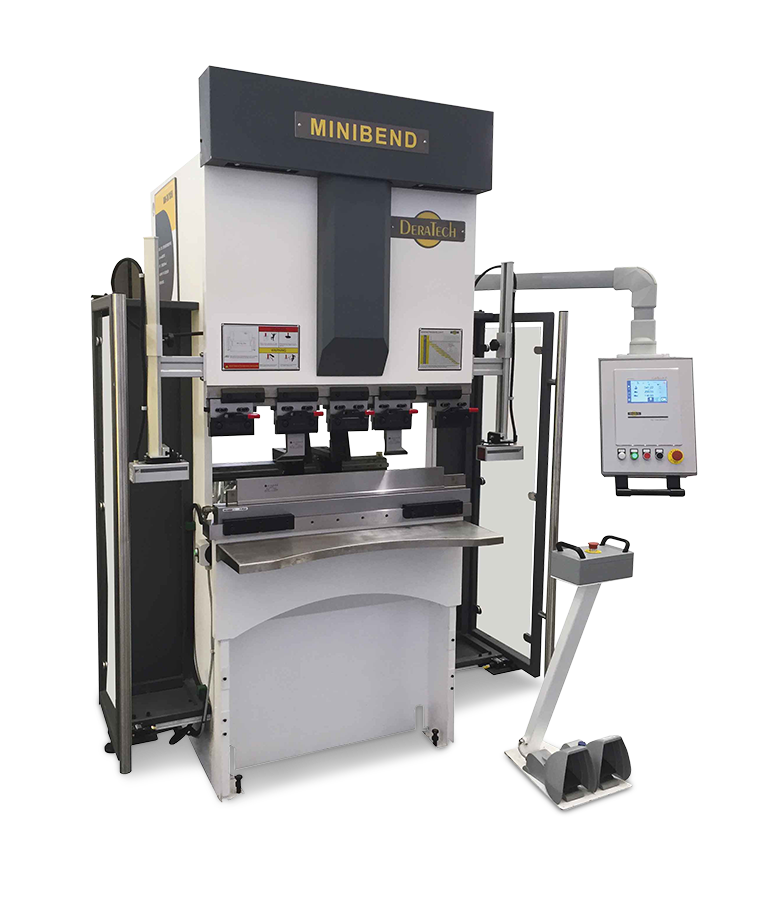

Minibend
The Ultima Minibend is a single cylinder hydraulic pressbrake, especially designed torsionally stiff welded machine frame, upper beam guided by high precision linear guides for the production of small parts in the productive way possible.
Technical Information
- 35 or 50 ton
- 1020mm up to 1650mm
- Can be used sitting or standing
- Available with E-drive or Hybrid system
- Touch Screen cnc-controller ESA 650
- Correction database
- Extremely fast working, due to high fall-down and bending speed
- Remote assistance
Controllers

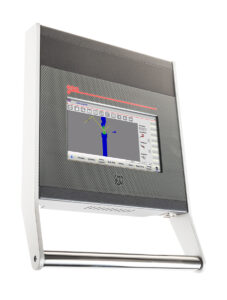

ESA 630
- 2D graphic editing for punches and dies.
- 2D graphic preview for part pieces.
- Programming of the axes position in tabular mode with automatic calculation of the R and A position and of the bending and crowning tonnage.
- Touch Screen 10”
- Can manage up to 4 axis + 1 and tandem operation

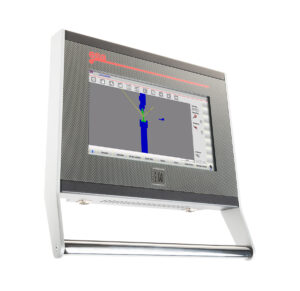

ESA 640
- 2D graphic editing for punches and dies.
- 2D graphic preview for part pieces.
- Programming of the axes position in tabular mode with automatic calculation of the R and A position and of the bending and crowning tonnage.
- Touch Screen 15”
- Can manage up to all possible axis + 1 tandem operation
- 3D Viewer functionality
Specification Table

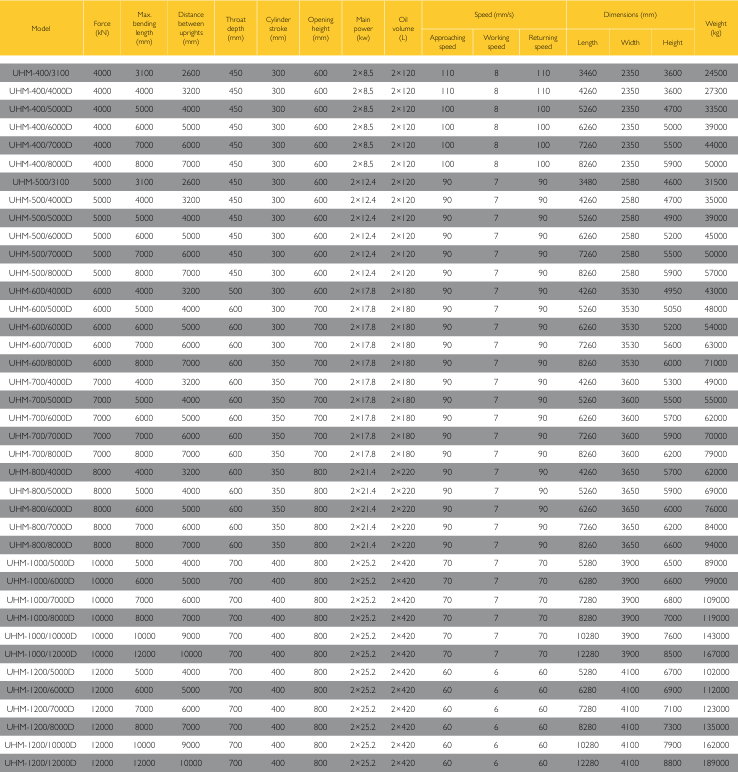

Ultima Hybrid

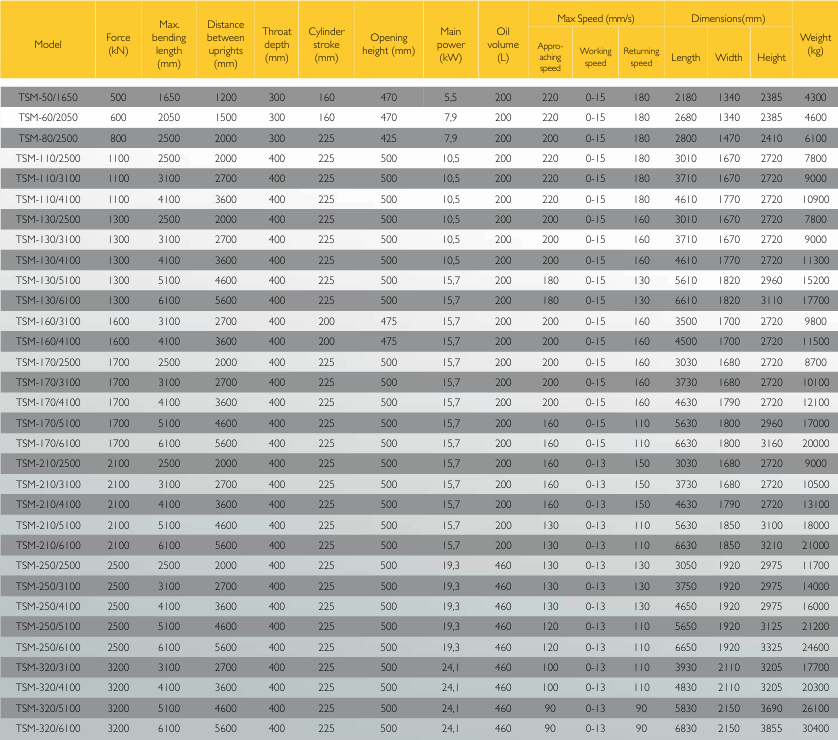

Technica

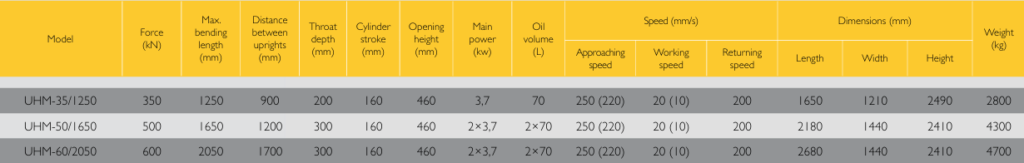

Mini Bend
