TH Series

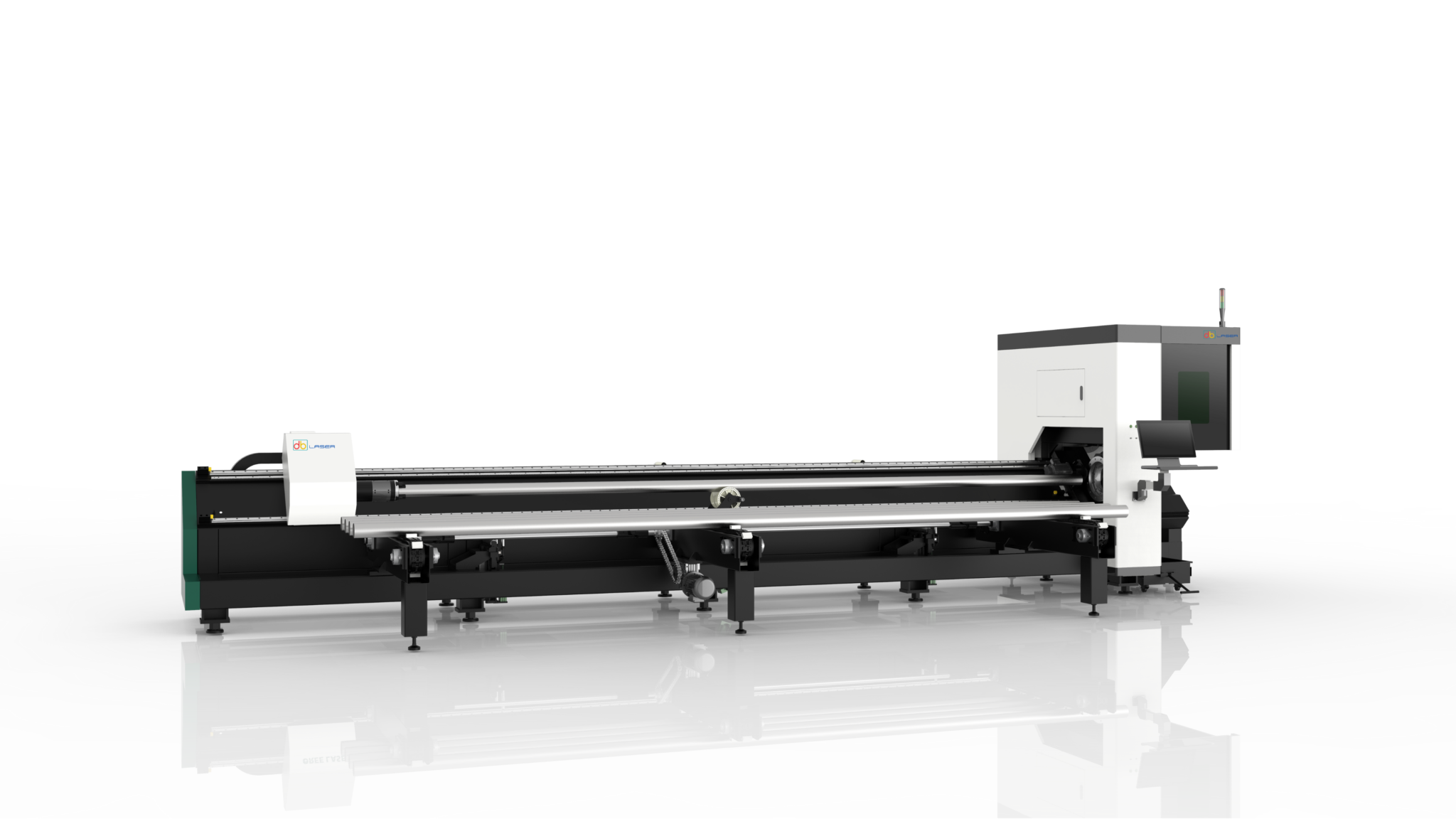

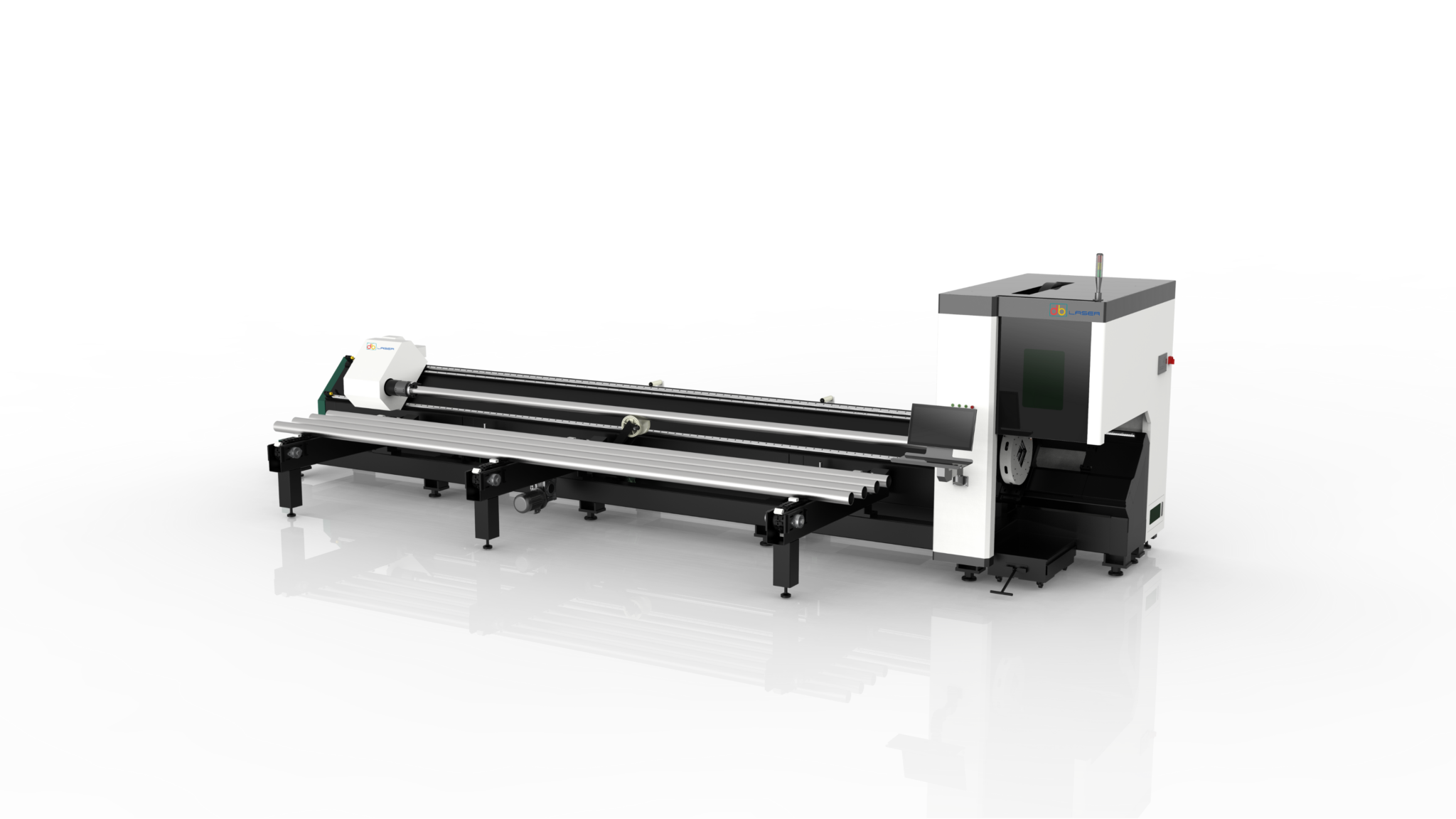

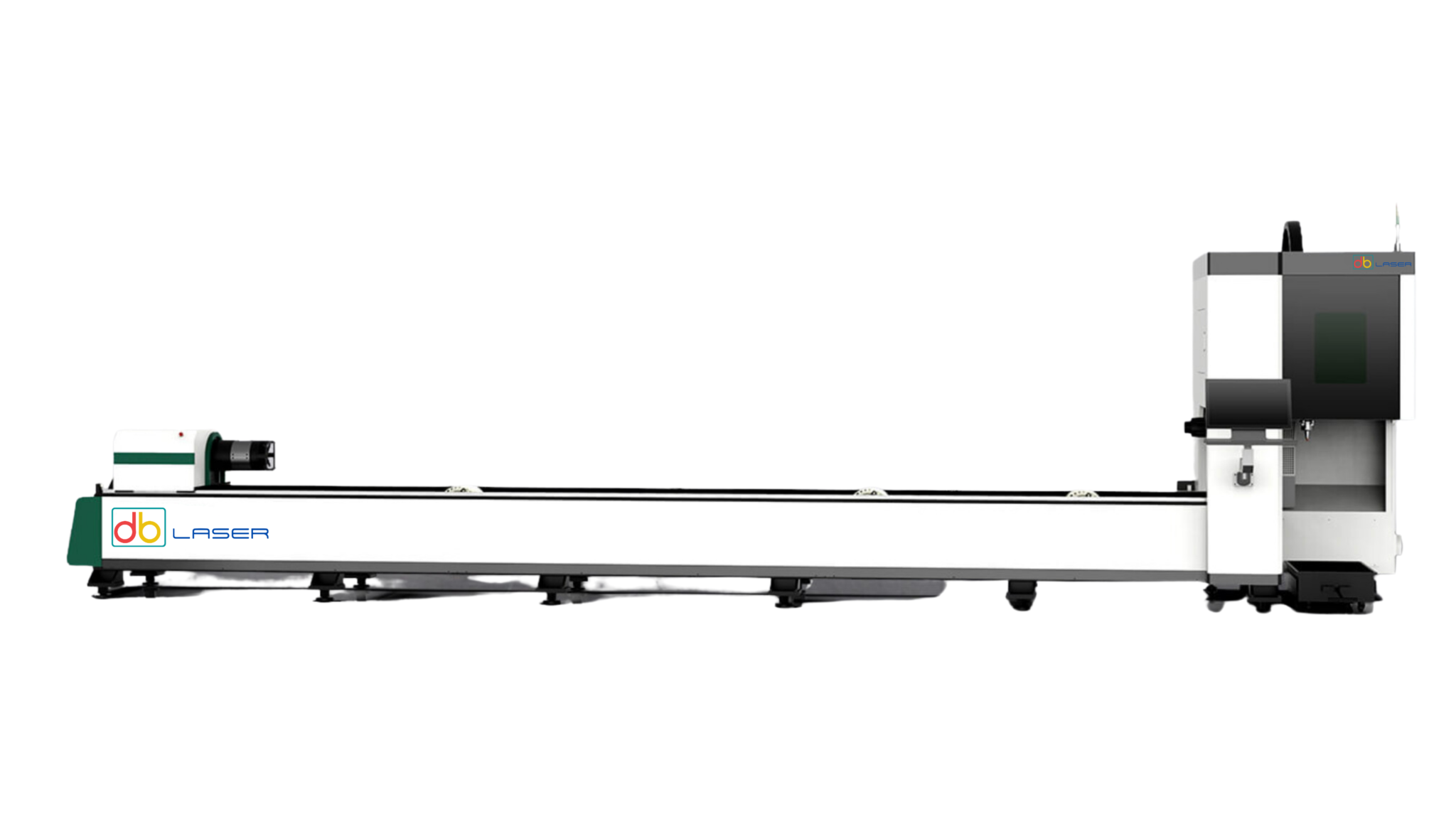

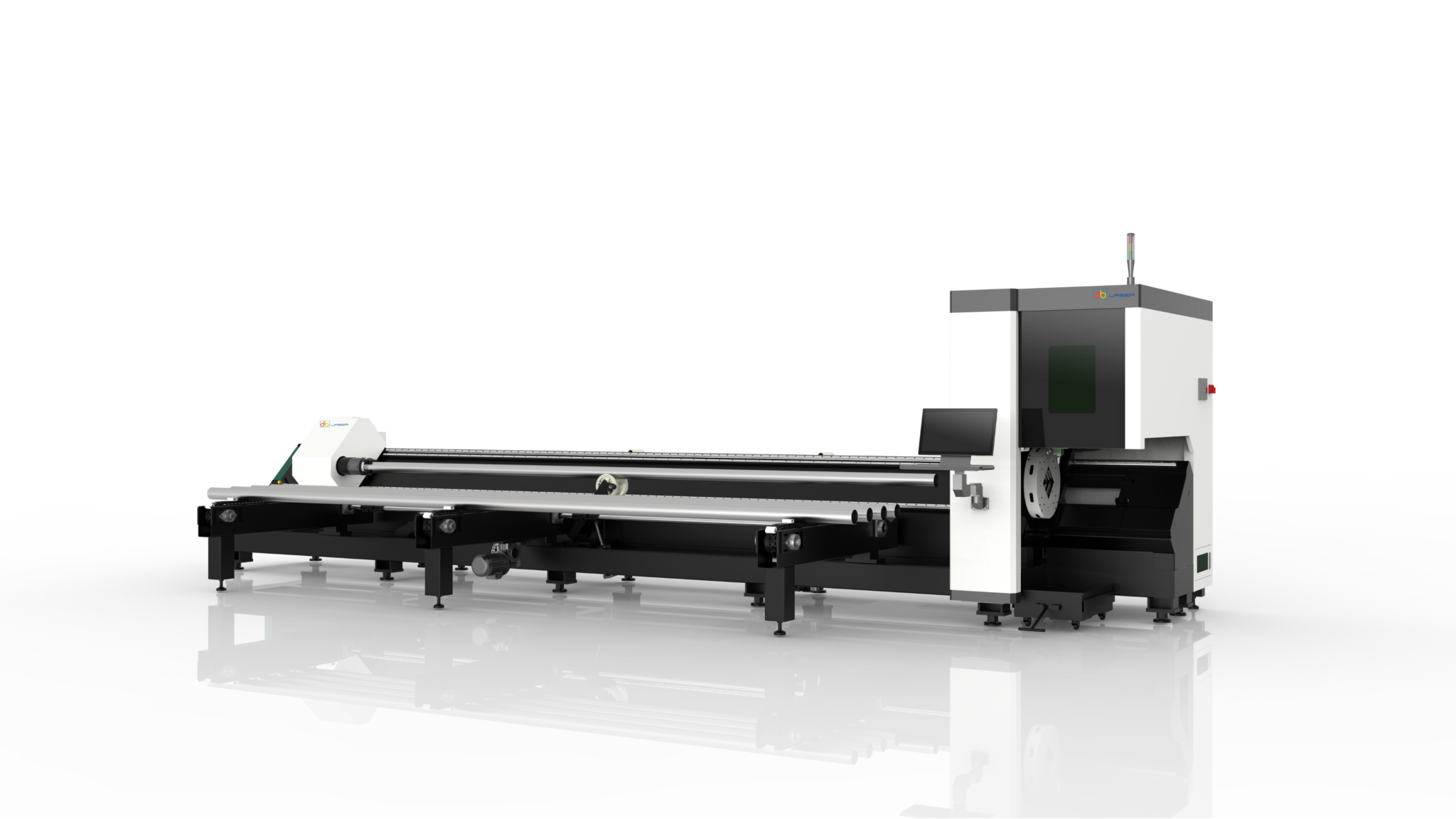

Side-Mounted High-Efficiency Laser Pipe Cutting Machine

Side hung plug-in welded bed

____

Side mounted welded bed, triangular structure, higher bed stability, the center of the chuck is located on the outside of the main body of the bed, more convenient and reliable loading.

Ultra short tailstock cutting

____

Movable front chuck for stable clamping and high clamping force automatic positioning of the center of the tube, to achieve ≤ 50mm ultra-short cutting tail material, with more material savings.

Support cutting round pipe with diameter of φ15mm-φ160mm, square pipe with diagonal less than 160mm and shaped pipe.

Wide range of pipe cutting diameters

____

Automatic loading system

____

Equipped with semi-automatic loading system, it supports a wide range of tube types for loading, just place multiple tubes on the conveyor belt to achieve automatic loading.

Intelligent Pipe Cutting System

____

Intelligent 3D professional pipe cutting system for precise pipe processing, faster pipe cutting speed and more reliable cutting quality. Support high precision and high efficiency cutting of square, round, runway and oval shaped stretch tubes as well as angles and channels.
ModelDB-TH6020DB-TH6016
Laser power1000w~3000w
Effective cutting diameter of round tubeΦ10-Φ225mmΦ10-Φ160mm
Effective cutting diameter of square tube□10-□225mm□10-□160mm
Positioning accuracy±0.01mm
Chuck maximum speed120r/min140r/min
Maximum acceleration1.5G

Specification Table
