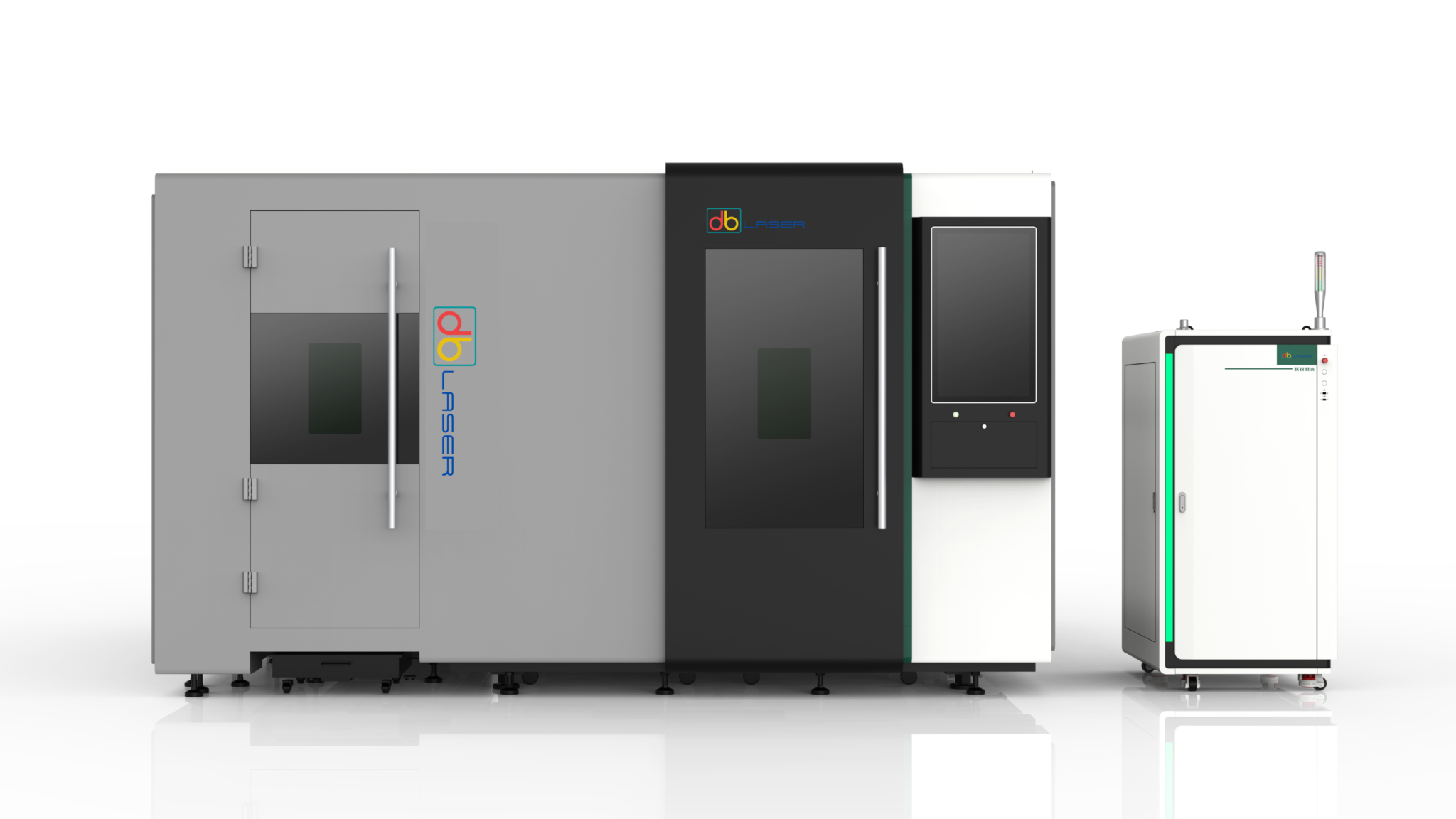

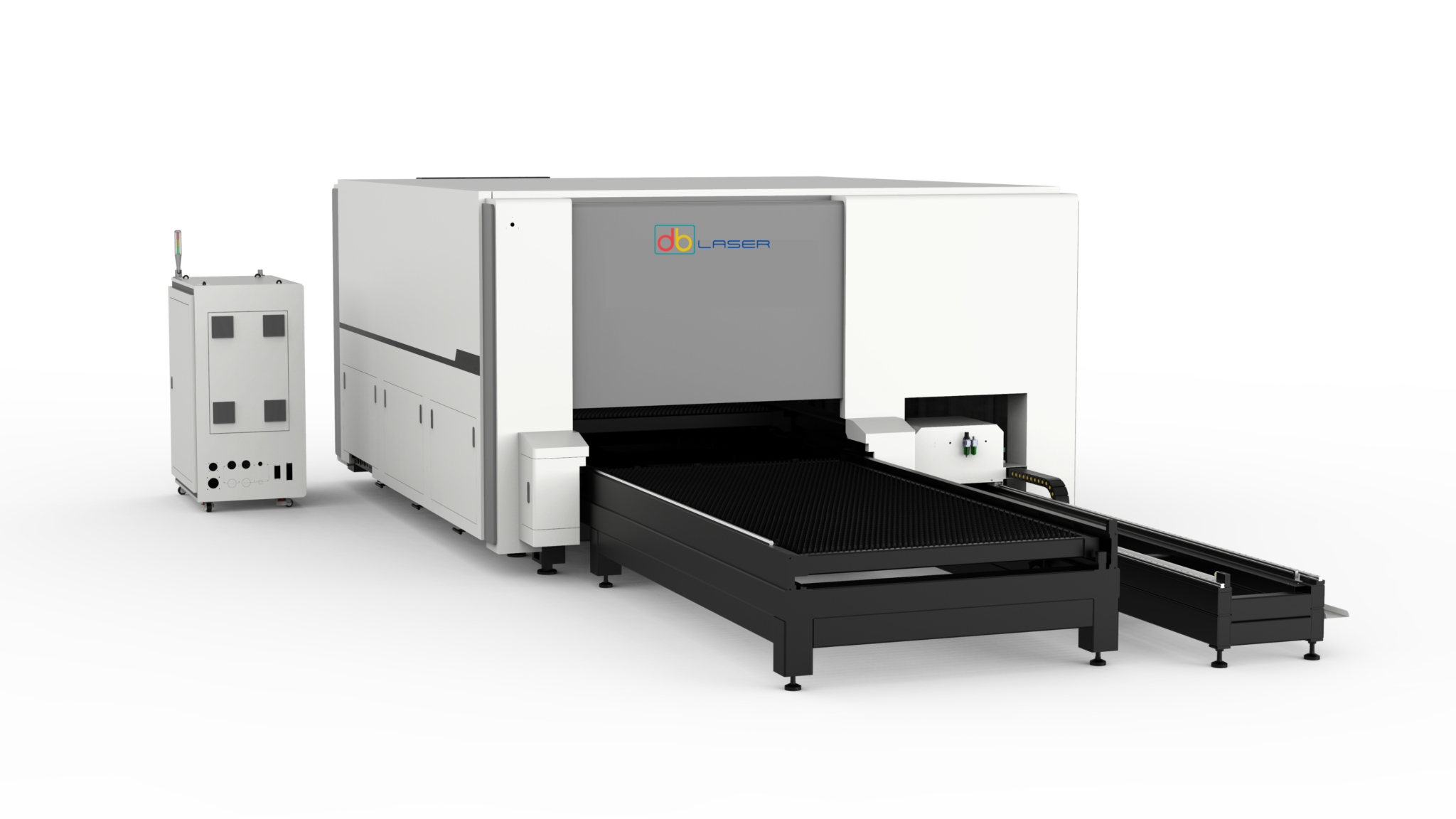

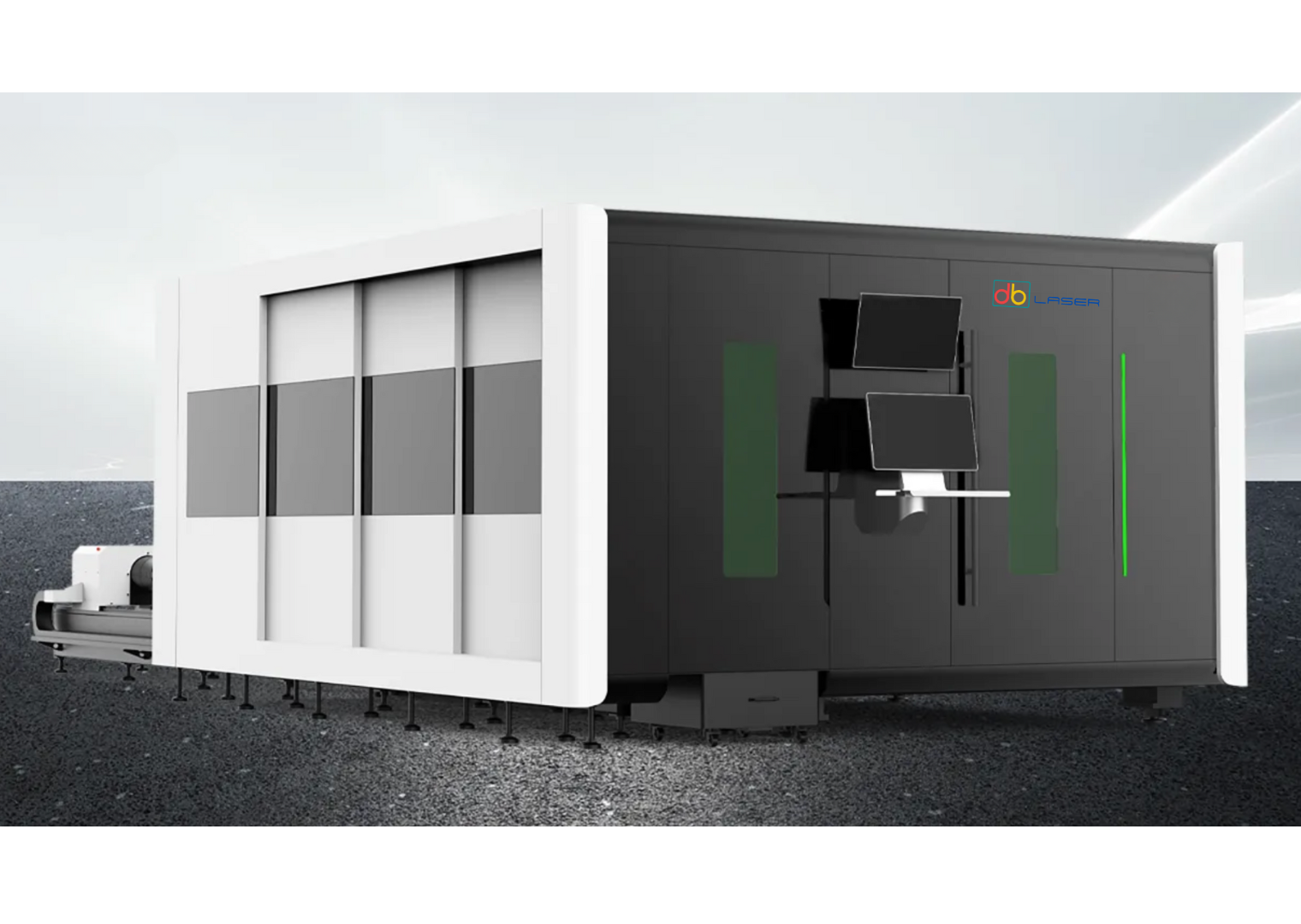

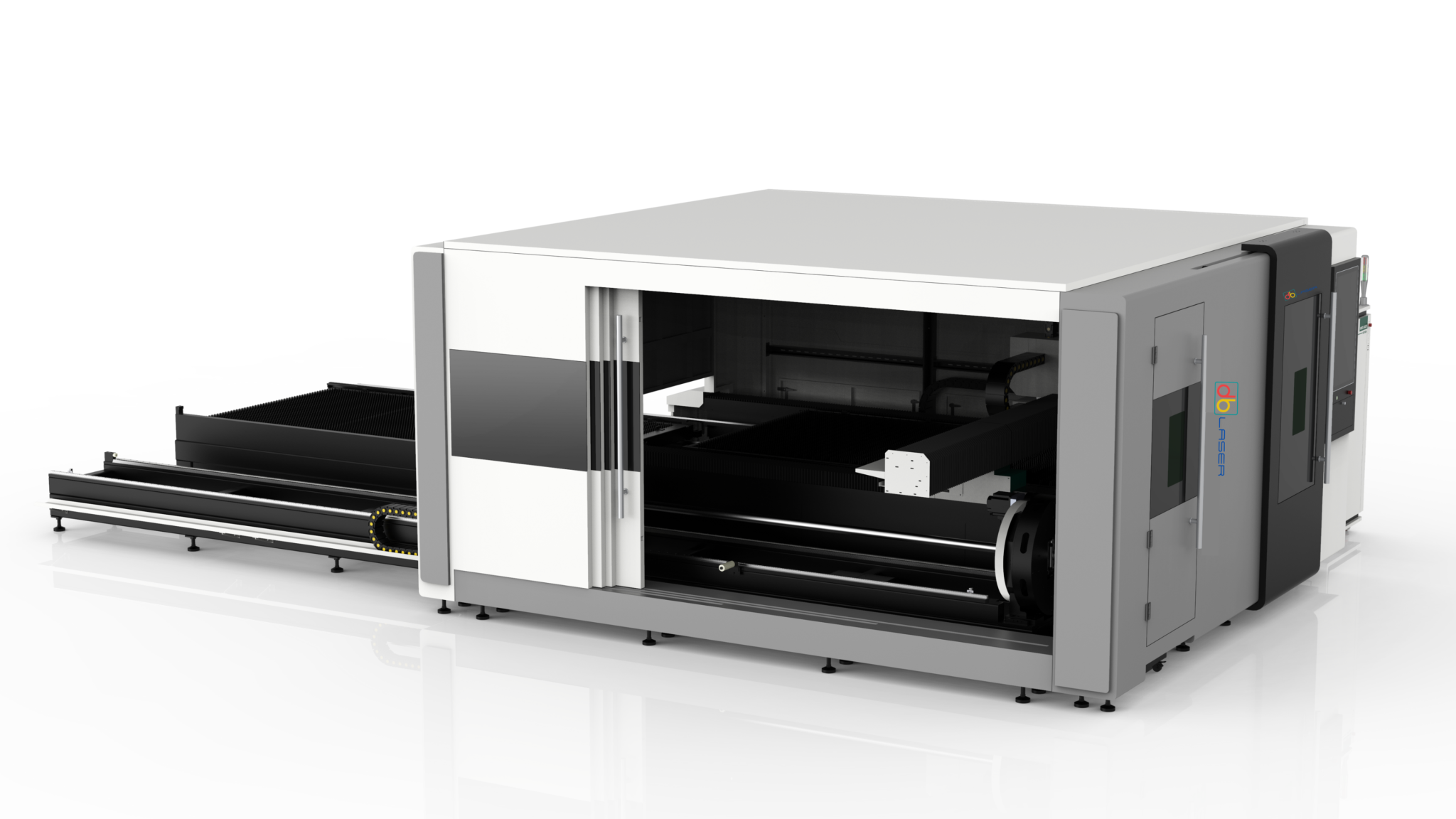

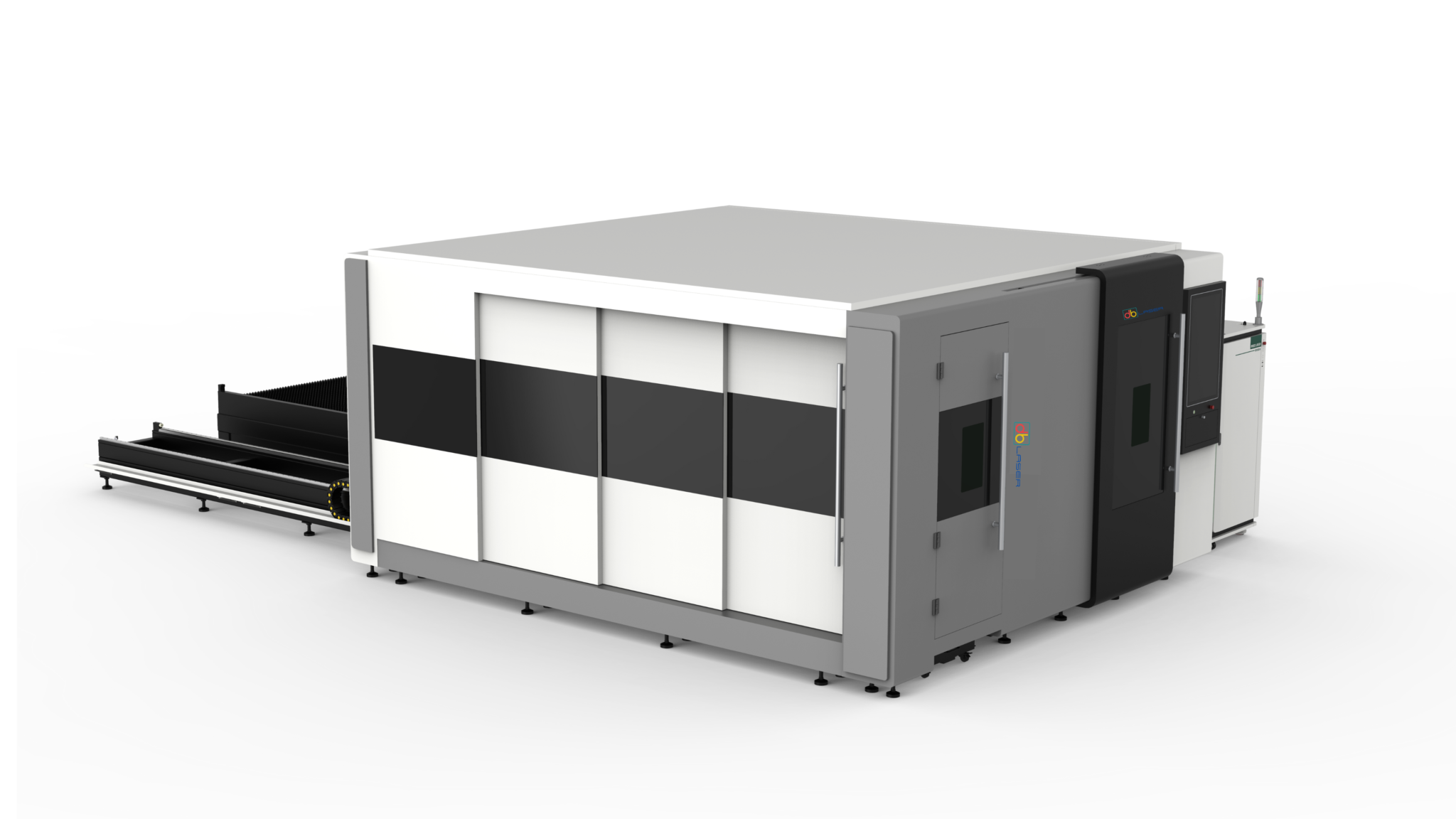

PH-T Series

Protective Closed Sheet and Tube Fiber Laser Cutting Machine

Enclosed Sheet and Tube Integrated Design

____

Fully protected sheet and tube integrated design.
One machine with dual functions, high cost performance, able to handle a wider range of cutting conditions, and ensures safe production.

Brand New Double-beam Bed Structure

____

Designed for high-efficiency processing needs
Self-developed stopper plug-in dual-beam design
Long-term cutting without deformation, ensuring stable equipment operation.

Suitable for a variety of focal lengths, the focus position can be adjusted according to different thicknesses. Flexible and fast, no collision, automatic edge finding, reducing sheet waste.

Auto Focus Laser Head

____

Independent Dual-screen Design

____

Adopts independent dual-screen design, simultaneously meets the cutting conditions for both sheet and pipe.
Real-time understanding of cutting conditions, safe, convenient, and efficient production.

Large diameter pneumatic chuck

____

One-button clamping, automatic centering
Pneumatic clamping, adjustable clamping force
Capable of cutting angle steel and channel steel
ModelDB-PH 3015TDB-PH 6015TDB-PH 4020TDB-PH 6020TDB-PH 6025T
Laser Power1000w~6000w
Accuracy Of Positioning±0.03mm
Repeat Positioning Accuracy±0.02mm
Max Movement Speed100m/min120m/min
Tube Size Rangeφ10-φ225mm,□10- □225mm

Specification Table
