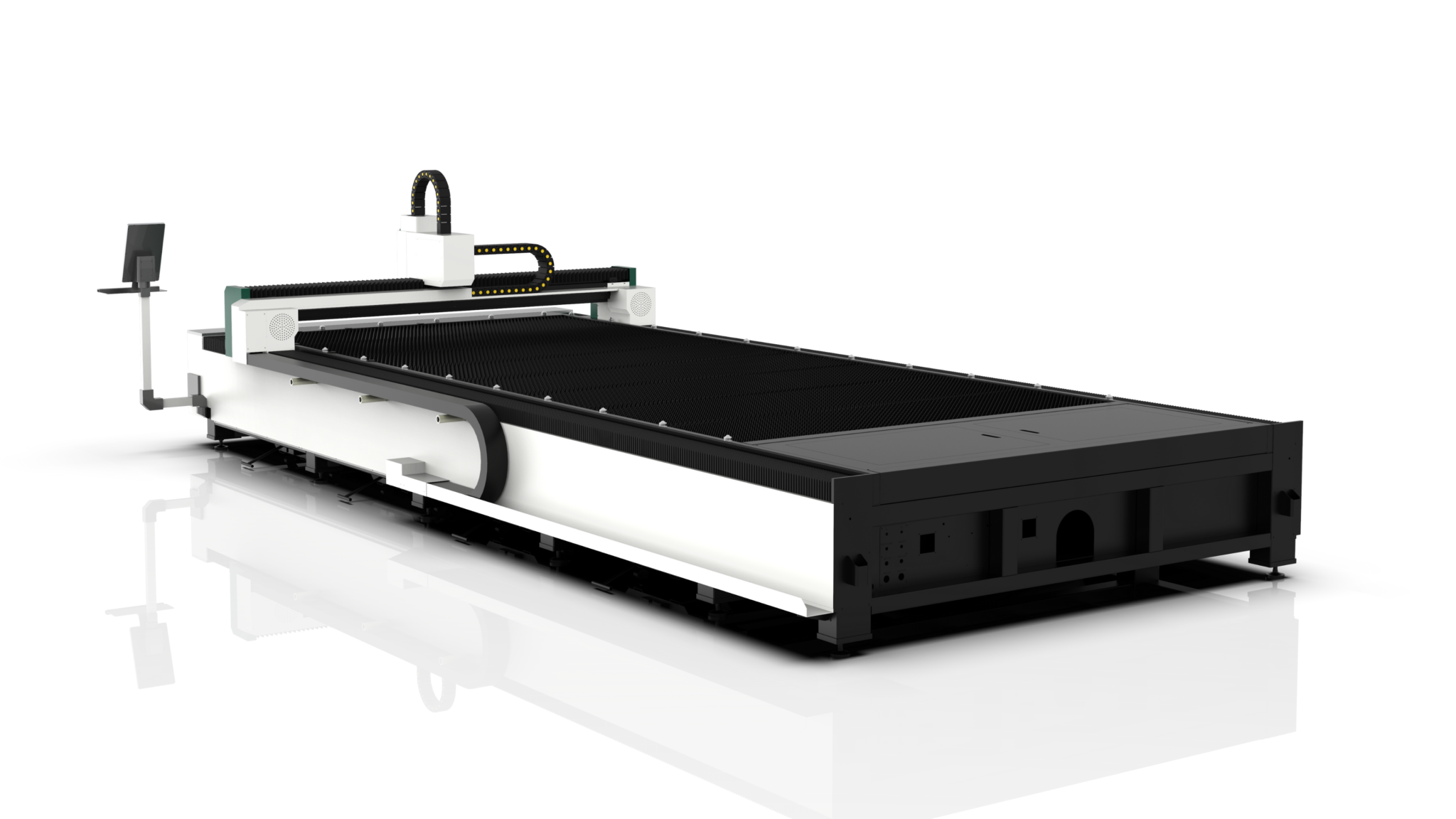

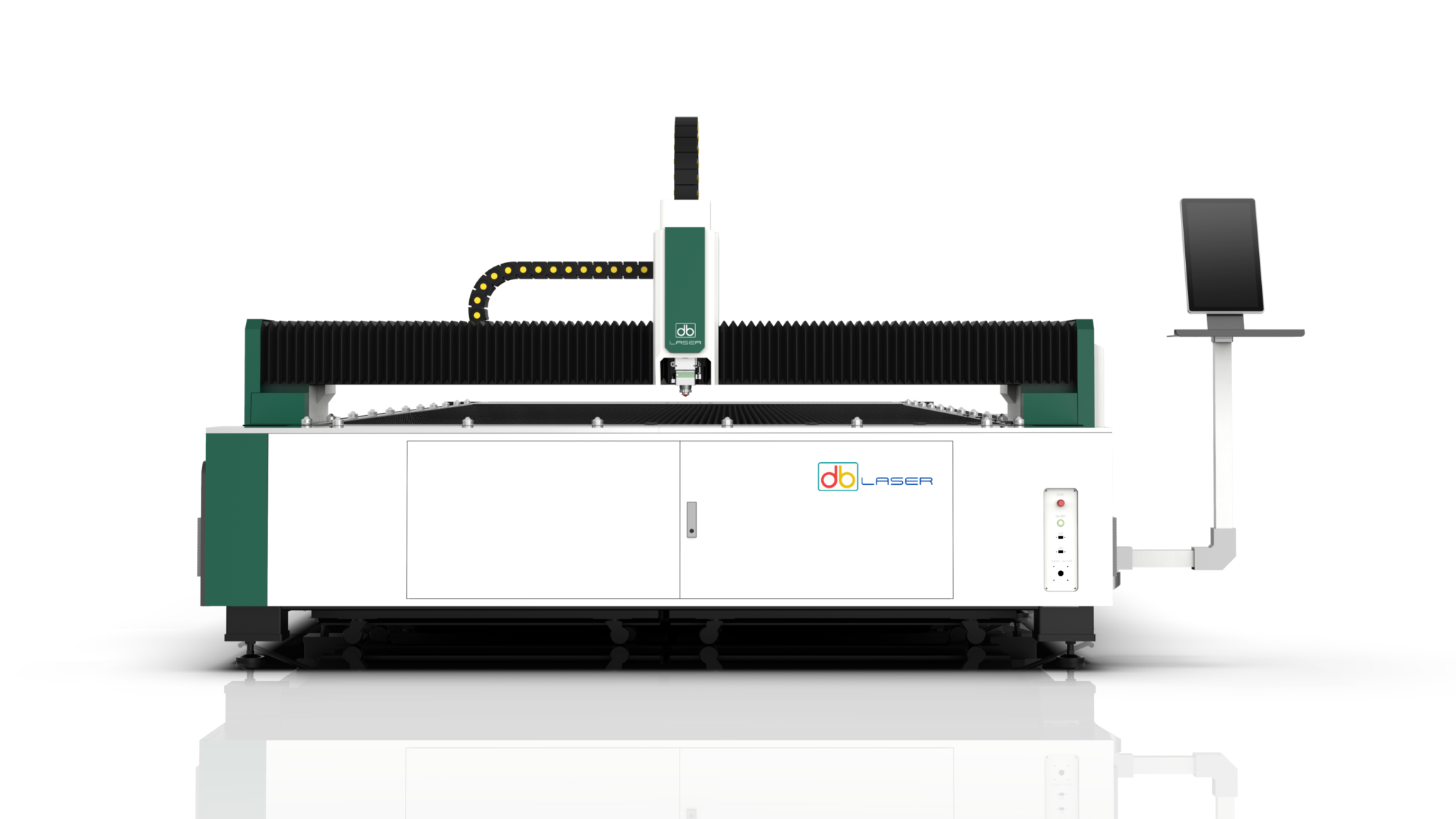

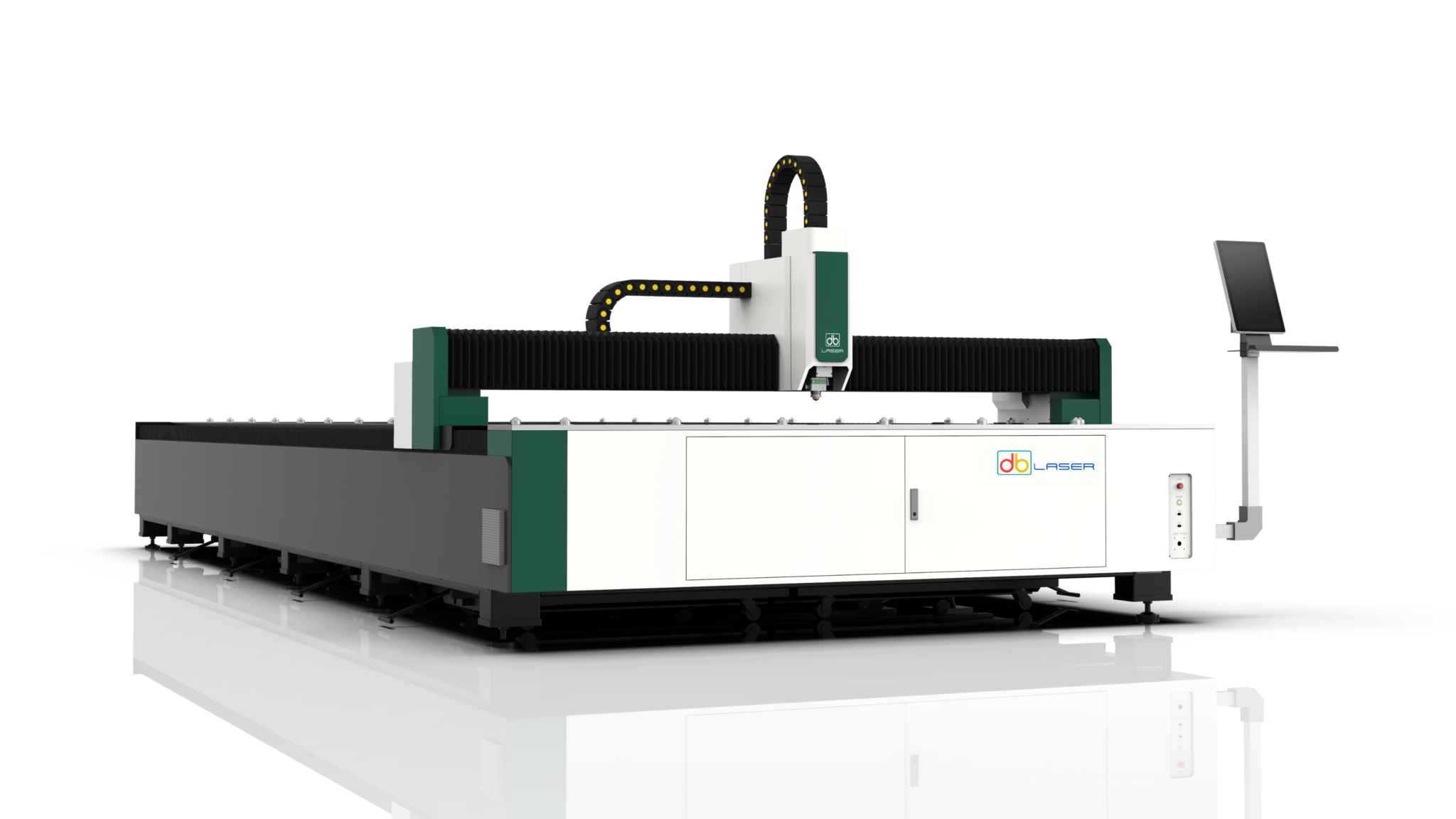

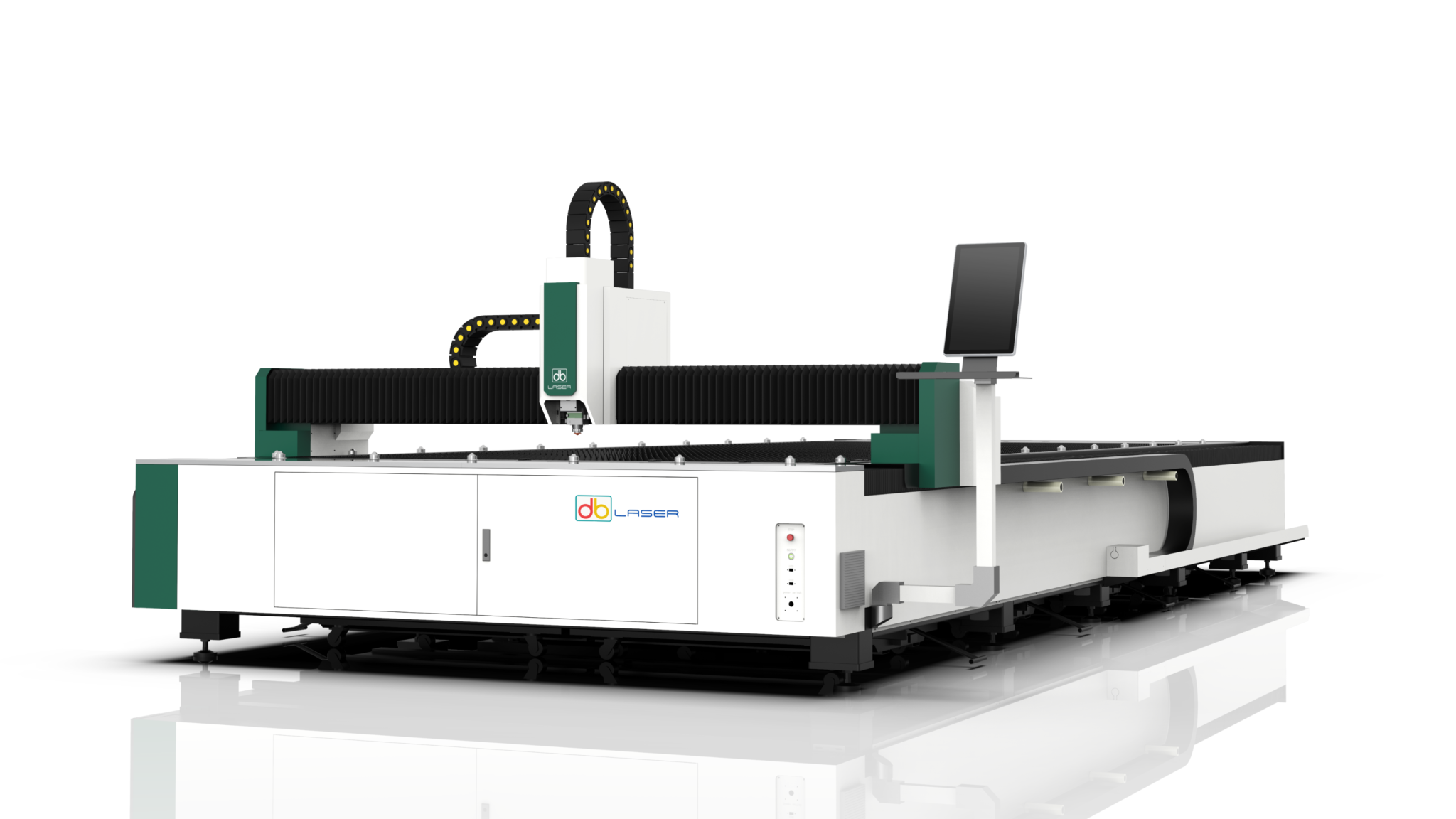

FH Series

Flatbed Fiber Laser Cutting Machine

Super Heavy Steel Welding Machine Bed

____

The bed adopts 12mm super-thick monolithic steel plate laser blanking.The groove welding method is used to make the plates reach equal strength butt Then it undergoes stress annealing and natural aging treatment to eliminate internal stress and maintain the extremely high stability and cutting accuracy of the bed.

The Fifth-generation Aviation Aluminum Alloy Beam

____

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

The auto-focusing optical fiber cutting head has a built-in motor drive unit. The focus lens is driven by a linear mechanism to automatically change the position within the specified range. The continuous focus can be set by the program to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials.

Auto Focus Laser Head

____

Intelligent Control System

____

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

Packed in a 20GP container for easy transportation

____

This small machine can be installed in a 20GP container to protect the fuselage from damage during transportation, reduce transportation costs, and facilitate loading and unloading. portation, reduce transportation costs, and facilitate loading and unloading.

Model DB-FH 3015 DB-FH 4015 DB-FH 6015 DB-FH 4020 DB-FH 6020 DB-FH 6025 DB-FH 8025
Laser Power 2000w ~ 12000w
Working Area 3050*1530mm 4050*1530mm 6050*1530mm 4050*2030mm 6050*2030mm 6050*2530mm 8050*2530mm
Accuracy Of Positioning ±0.03mm
Repeat Repositioning Accuracy ±0.02mm
Max Movement Speed 100m/min 120m/min
Maximum Acceleration 1.5G

Specification Table

×
