EH Series

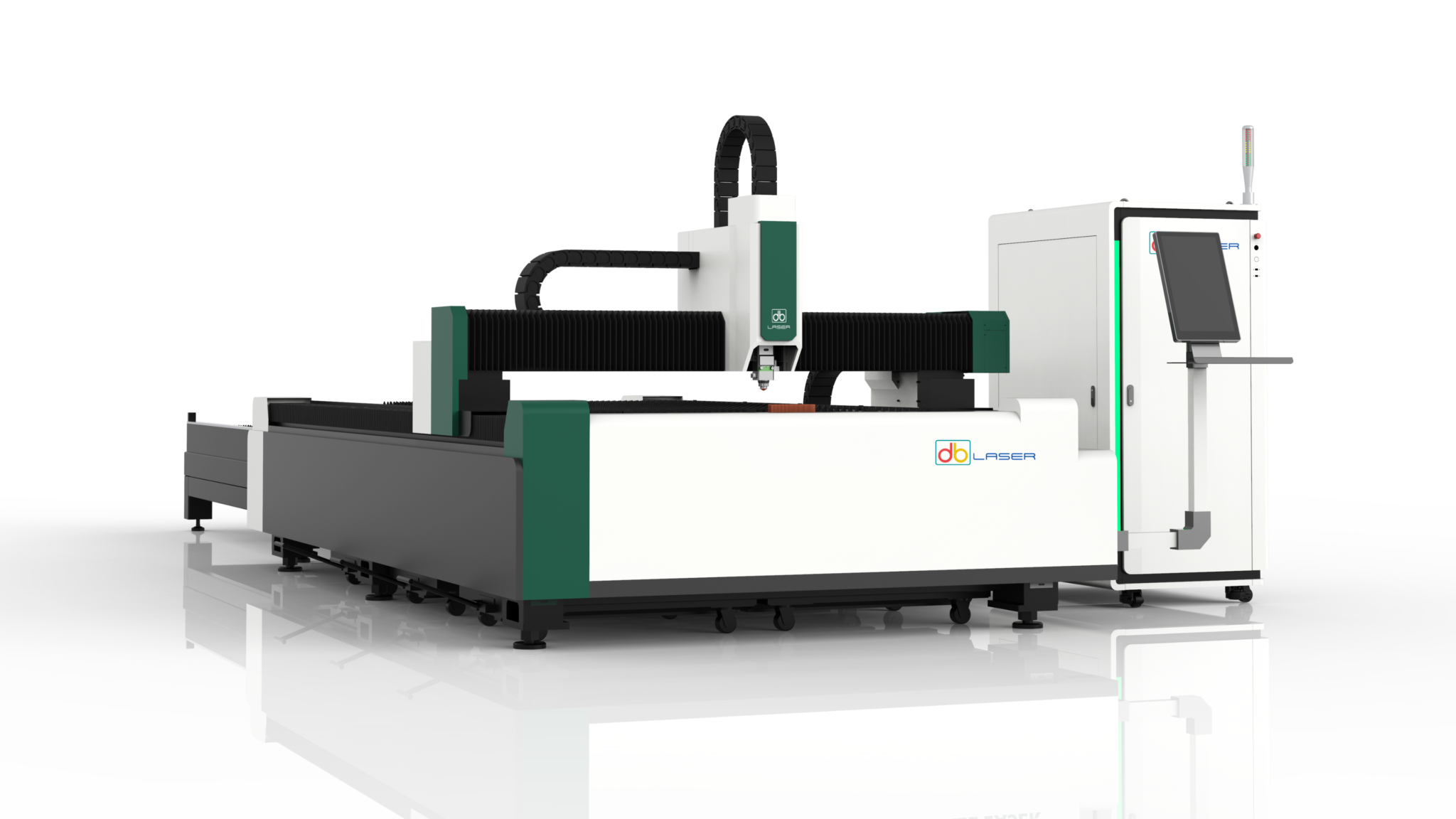

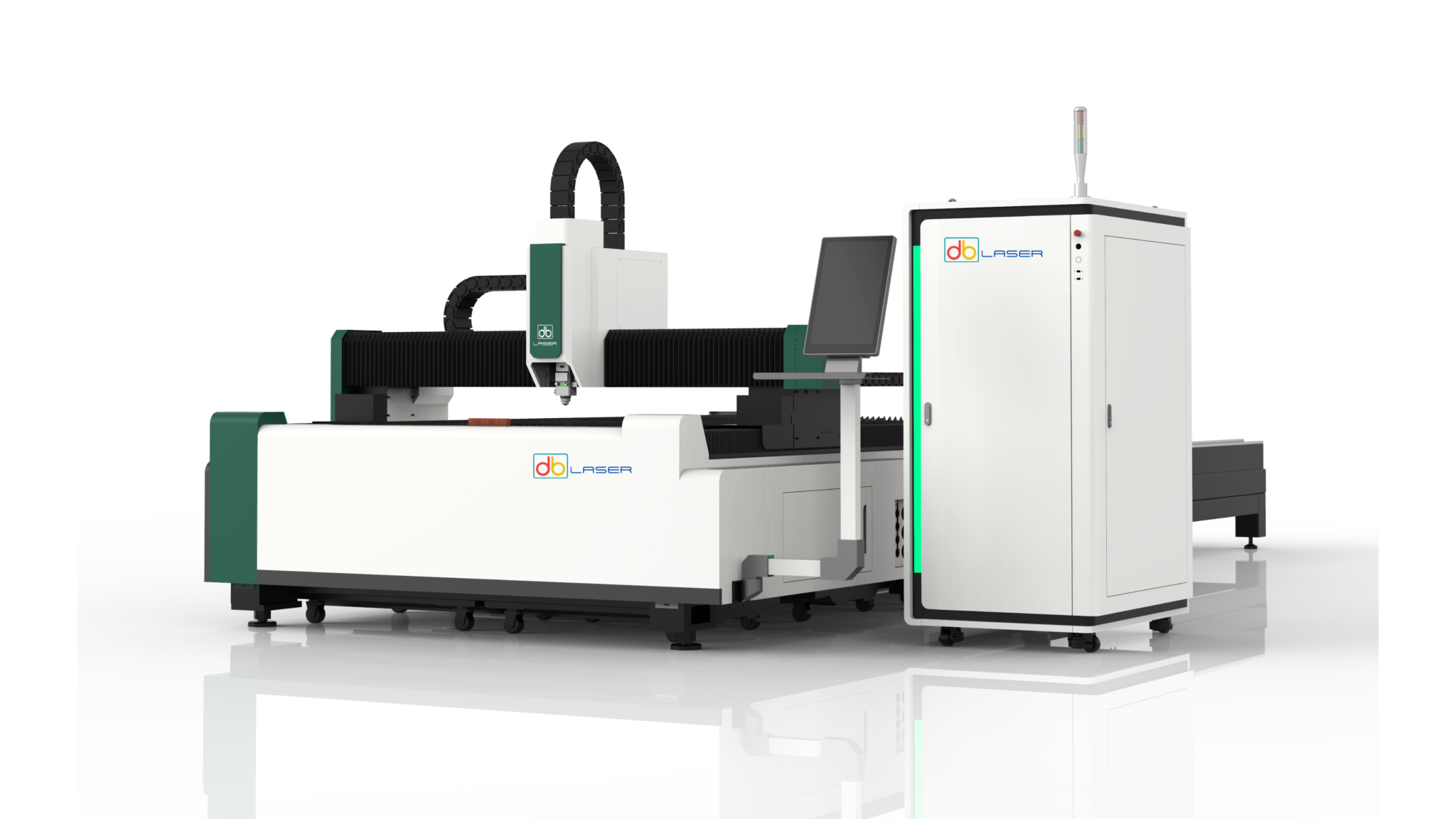

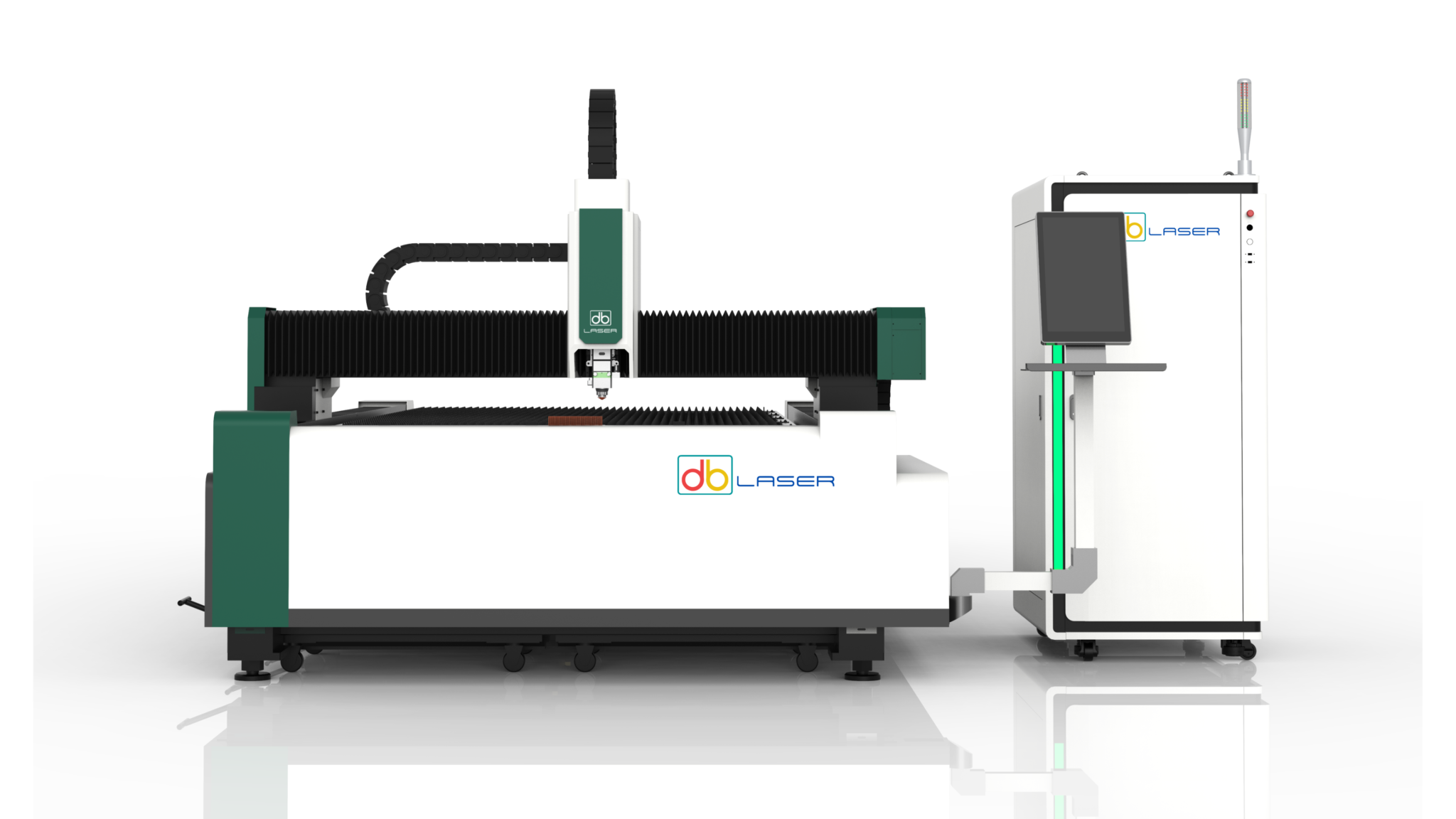

Exchange Platform Fiber Laser Cutting Machine

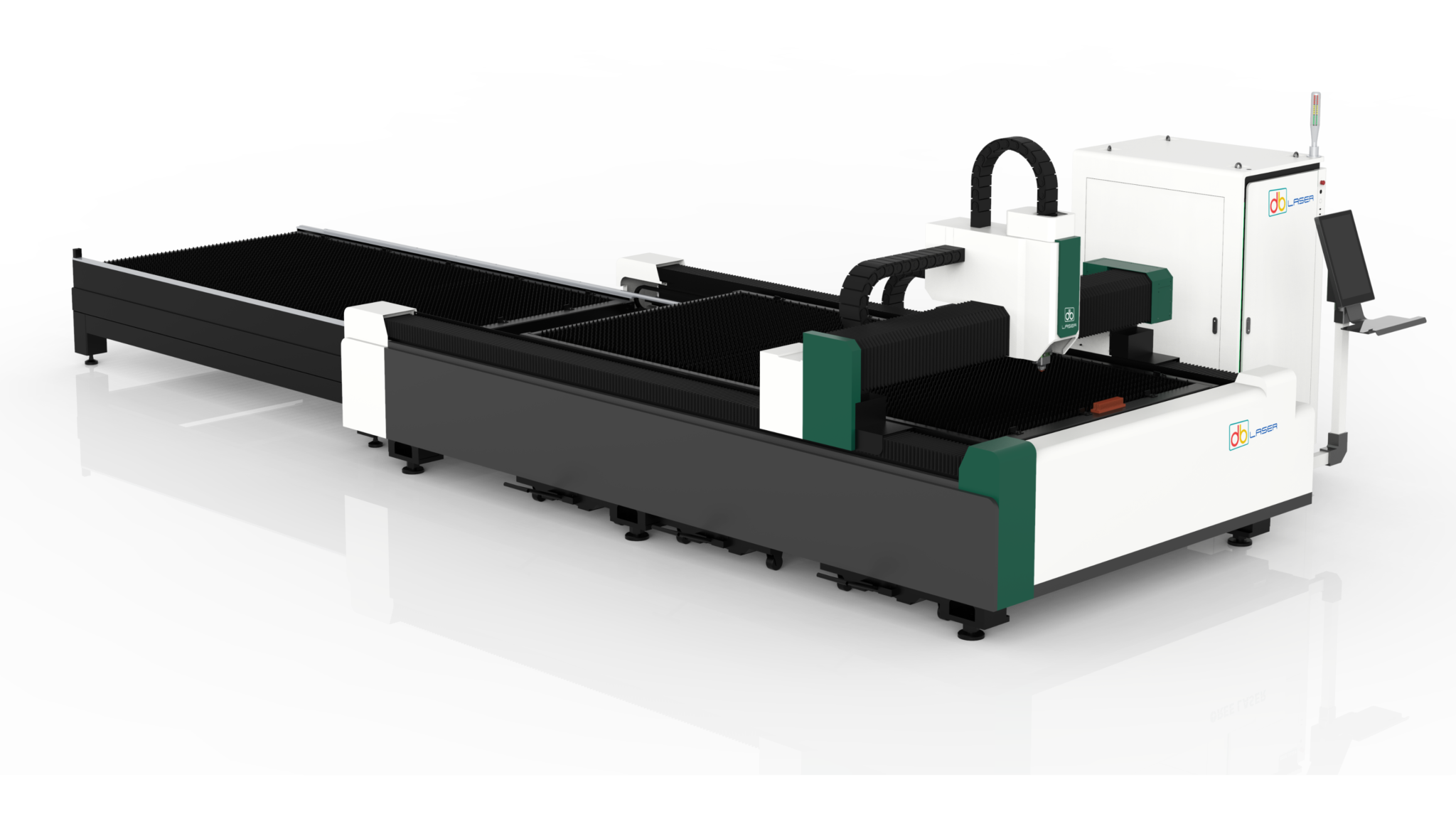

Faster Exchange Speed

____

Equipped with a six-sided steel track, the pulley and the track are inlaid closely, and the built-in pulley runs smoothly. The fastest can achieve a complete exchange of 10S.

Auto Focus Laser Head

____

Suitable for a variety of focal lengths, the focus position can be adjusted according to different thicknesses. Flexible and fast, no collision, automatic edge finding, reducing sheet waste.

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

The Fifth-Generation Aviation Aluminum Alloy Beam

____

Super Heavy Steel Welding Machine Bed

____

The bed adopts 12mm super-thick monolithic steel plate laser blanking. Finite element analysis assists in optimizing the structure of the bed. The groove welding method is used to make the plates reach equal strength butt to ensure the excellent mechanical properties of the bed. Then it undergoes stress annealing and natural aging treatment to eliminate internal stress and maintain the extremely high stability and cutting accuracy of the bed.

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

Intelligent Control System

____

ModelDB-EH 3015DB-EH 4020DB-EH 6020
Laser Power2000w~6000w
Working Area3050*1530mm4050*2030mm6050*2030mm
Accuracy Of Positioning±0.03mm
Repositioning Accuracy±0.02mm
Max Movement Speed100m/min120m/min
Maximum Acceleration1.5G

Specification Table
