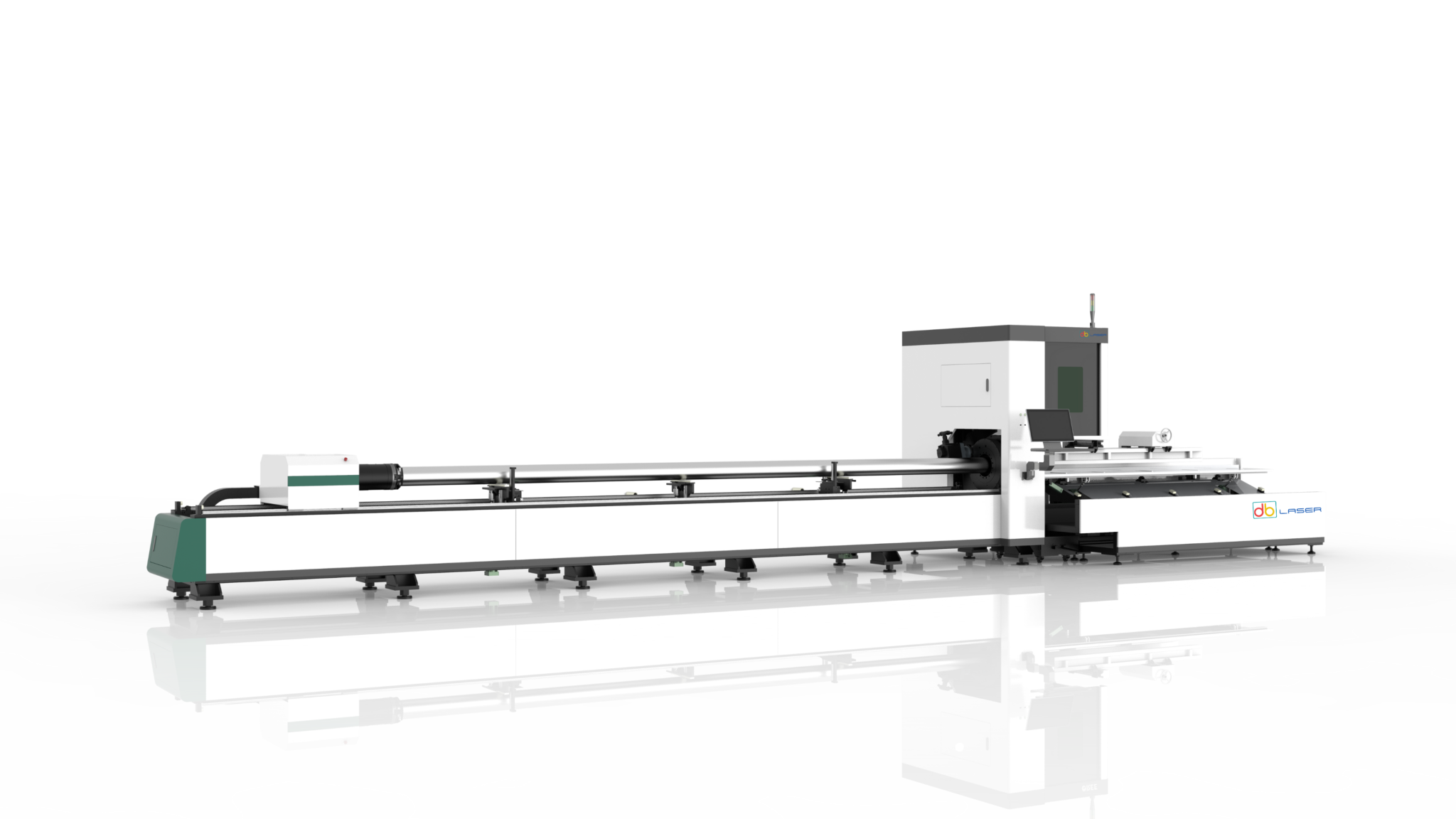

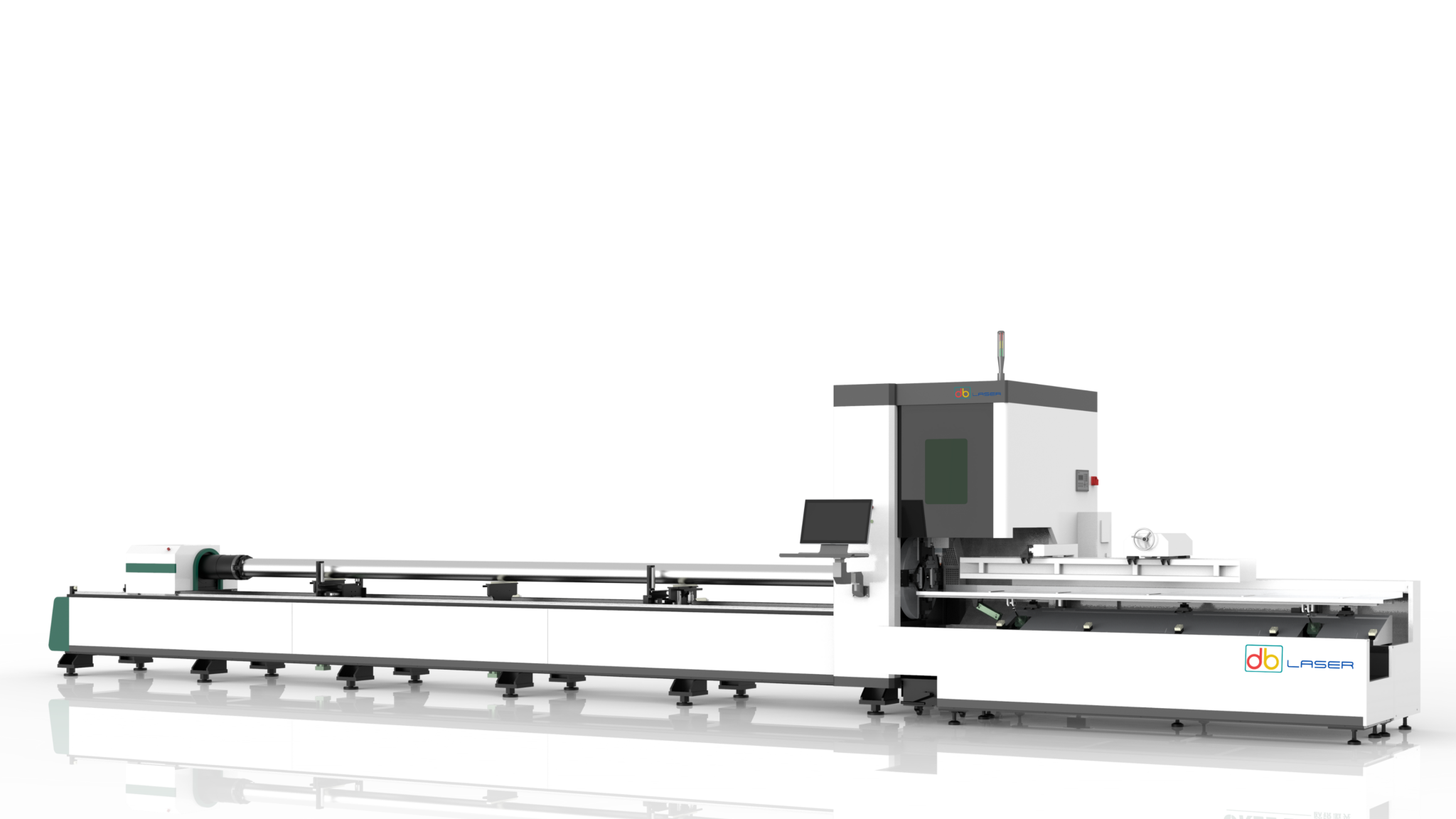

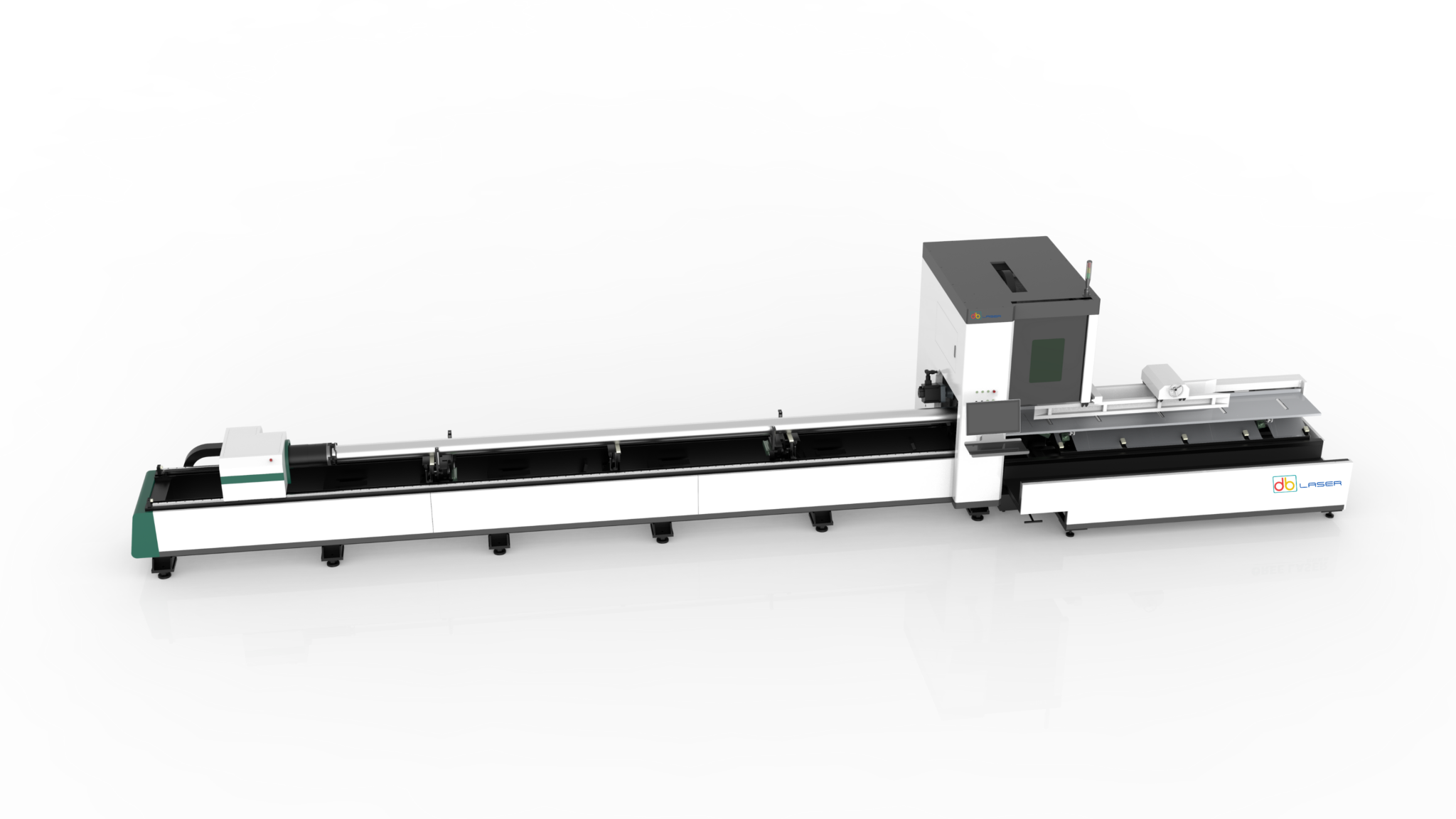

TA Series

High Precision Laser Cutting Tube

"Place the pipe on the supporting roller"

____

The pipe clamping range is wide,Round tube φ10-φ10, and Square tube side length is 10 * 10mm-350mm * 350mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waist pipe, multi-deformed pipe, etc.

"Pneumatic correction and centering device"

____

Place the pipe on the supporting roller, the correction component works, and the correction device clamps the pipe to automatically align the center of the chuck, and the chuck precisely clamps and feeds the material.

Adopt overall heavy-duty high-strength cold-rolled tube sheet tailor-welded bed, plug-in structure, and equal-strength welding

"Integrated Machine Bed"

____

"Upgrade the tube cutting bus system"

____

Cypcut FSCUT5000 pipe cutting bus system supports high-precision and high-efficiency cutting of square pipes, round pipes, racetrack-shaped, elliptical and other stretched pipes, as well as angle steel and channel steel.

"Efficient Auto-lubrication system"

____

Manually set the number and time interval of automatic lubrication according to the length of equipment use;Automatic lubrication of guide rails, sliders, gears, racks, and other components, recycling, and centralized processing of lubricating waste oil.
ModelTA6035TA6020TA12020
Laser Output Power1000w~6000w
Effective Cutting Diameter Of Round Tubeφ15mm-φ350mmφ15mm-φ230mm
Effective Cutting Diameter Of Square Tube□15mm-□350mm□15mm-□230mm
Accuracy Of Positioning±0.05mm
Repeat Repositioning Accuracy±0.05mm
Max Movement Speed80m/min110m/min
Maximum Acceleration0.8G1.5G



Specification Table
